7.2 ZeRO (Zero Redundancy Optimizer)

In the previous section, we established that Distributed Data Parallel (DDP) scales compute linearly by slicing the dataset across multiple GPUs. However, DDP harbors a fatal physical limitation: every GPU in the cluster must hold a complete, identical replica of the model and its training states.

As Foundation Models grew from 1 billion parameters in 2019 to over 100 billion parameters by 2020, engineers slammed into a physical barrier known as the Memory Wall. No matter how many GPUs you added to your cluster, if the model could not fit into the VRAM of a single GPU, training was impossible.

To break this barrier, researchers at Microsoft developed the Zero Redundancy Optimizer (ZeRO) [1]. ZeRO fundamentally reimagines distributed training by treating the entire cluster’s VRAM as a single, contiguous memory pool. It provides the memory efficiency of Model Parallelism while maintaining the simplicity and communication efficiency of Data Parallelism.

1. The Anatomy of GPU Memory

To understand how ZeRO optimizes memory, we must first dissect where the memory goes during training.

During mixed-precision training (which is standard for Foundation Models), GPU memory is consumed by two main categories: Residual States (activations, temporary buffers, fragmentation) and Model States.

Model States are the primary bottleneck. Let $\Phi$ be the total number of parameters in the model. If we use mixed-precision training (FP16/BF16) with the Adam optimizer, the memory footprint per GPU under standard DDP is:

1. Parameters (FP16): $2\Phi$ bytes.
2. Gradients (FP16): $2\Phi$ bytes.
3. Optimizer States (FP32): Adam requires storing an FP32 copy of the master weights, the momentum (1st moment), and the variance (2nd moment).
   • Master Weights: $4\Phi$ bytes
   • Momentum: $4\Phi$ bytes
   • Variance: $4\Phi$ bytes
   • Total Optimizer State: $12\Phi$ bytes.

Total Model State Memory = $16\Phi$ bytes.

Notice a striking reality: The optimizer states consume 75% of the memory ($12\Phi$ out of $16\Phi$).

If we attempt to train a 70-billion parameter model (like Llama 3 70B), the Model States alone require $16 \times 70 \text{ billion} \approx 1.12 \text{ Terabytes}$ of VRAM. An NVIDIA H100 GPU has 80GB of VRAM. Under standard DDP, this model is mathematically impossible to train, regardless of whether you have 1 GPU or 10,000 GPUs.

2. The ZeRO Philosophy: Data Parallelism on Steroids

Standard DDP uses an All-Reduce operation to average gradients. After the backward pass, every GPU has the exact same gradients, and every GPU independently performs the exact same optimizer step to update its identical replica of the weights. This is massive redundancy.

ZeRO eliminates this redundancy by partitioning the model states across the $N$ GPUs in the cluster, rather than replicating them. ZeRO is implemented in three progressive stages.

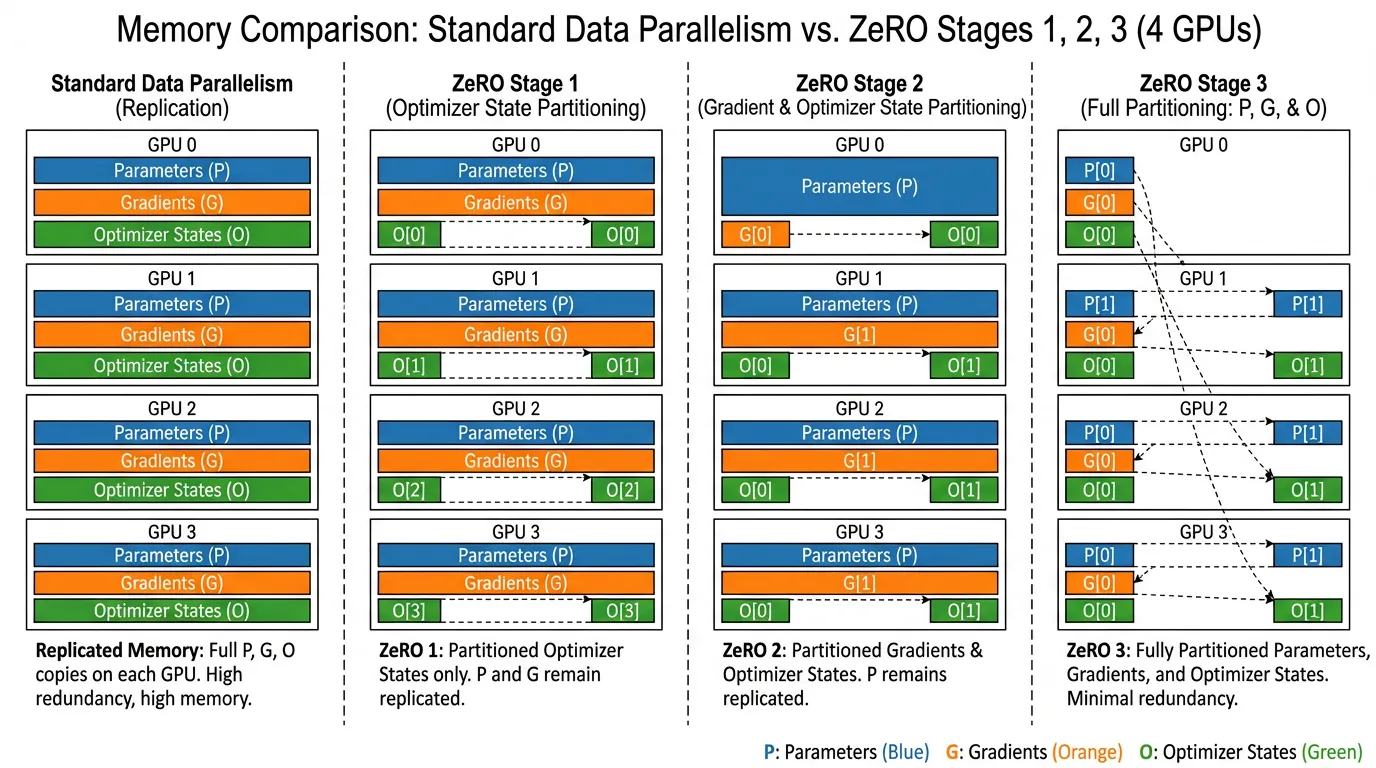

Source: AI-generated illustration. Inspired by Rajbhandari et al., 2020.

Stage 1: Optimizer State Partitioning ($P_{os}$)

Instead of every GPU storing the massive $12\Phi$ optimizer states, ZeRO-1 slices the optimizer states into $N$ equal partitions.

• GPU $i$ only stores the optimizer states for its specific partition of the parameters.
• GPU $i$ is solely responsible for updating its assigned slice of the weights.
• Memory Footprint: Drops from $16\Phi$ to $4\Phi + \frac{12\Phi}{N}$.
• Communication Overhead: 0%. Instead of an All-Reduce, ZeRO uses a Reduce-Scatter for gradients, followed by an All-Gather for the updated weights. The total data transmitted over the network is mathematically identical to standard DDP’s All-Reduce.

Stage 2: Gradient Partitioning ($P_{os+g}$)

If GPU $i$ is only responsible for updating partition $i$ of the weights, it does not need to store the entire gradient tensor. In ZeRO-2, as soon as a gradient bucket is computed during the backward pass, it is immediately reduced and scattered to the responsible GPU, and then the local replica is discarded.

• Memory Footprint: Drops to $2\Phi + \frac{14\Phi}{N}$.
• Communication Overhead: 0%. It uses the exact same Reduce-Scatter/All-Gather primitive as Stage 1.

Stage 3: Parameter Partitioning ($P_{os+g+p}$)

This is the holy grail, often referred to as Fully Sharded Data Parallel (FSDP) in the PyTorch ecosystem. ZeRO-3 partitions the parameters themselves. The GPUs hold no complete model.

• Mechanism: When a specific transformer layer needs to compute its forward or backward pass, ZeRO-3 performs a Just-In-Time (JIT) All-Gather to reconstruct that specific layer’s weights. As soon as the computation for that layer is finished, the weights are instantly discarded from memory.
• Memory Footprint: Scales linearly with the cluster size: $\frac{16\Phi}{N}$.
• Communication Overhead: ~1.5x. Because weights must be All-Gathered during both the forward and backward passes, the network volume increases by 50% compared to DDP. However, this is easily hidden by overlapping the communication of Layer $L$ with the computation of Layer $L-1$.

3. Interactive Visualization: The Memory Wall

Use the interactive component below to simulate the memory footprint of different Foundation Models across varying cluster sizes. Notice how standard DDP quickly exceeds the 80GB VRAM limit of an H100, while ZeRO-3 keeps the memory footprint comfortably low, allowing the remaining VRAM to be used for larger batch sizes or longer context windows.

(Note: The visualizer calculates pure Model State memory. In practice, you must also account for activation memory, which can be mitigated using Activation Checkpointing.)

4. Beyond GPU Limits: ZeRO-Offload & ZeRO-Infinity

While ZeRO-3 allows memory to scale linearly with the number of GPUs, what if you are a researcher with only a single GPU or a small 4-GPU node?

The DeepSpeed team introduced ZeRO-Offload [2] and ZeRO-Infinity [3] to exploit the entire system’s memory hierarchy.

• ZeRO-Offload (CPU RAM): The CPU is computationally slow but has massive memory (often 1TB+ of system RAM). ZeRO-Offload moves the $12\Phi$ Optimizer States and the Adam computation to the CPU. While the GPU computes the forward/backward pass for step $t$, the CPU asynchronously updates the weights for step $t-1$ and transfers them back via PCIe. This allows training a 13-billion parameter model on a single GPU.
• ZeRO-Infinity (NVMe Storage): Extending the offload concept to NVMe Solid State Drives. By treating high-speed NVMe storage as a massive virtual memory pool and using memory-centric tiling, ZeRO-Infinity allows a single machine to host and fine-tune models with trillions of parameters, completely shattering the GPU memory barrier.

5. Engineering Implementation: Initialization Is Part of the Memory Plan

Limitation: this compact DeepSpeed sketch illustrates initialization and causal loss semantics. It omits a real Transformer, padding masks, mixed-precision policy, validation, and production checkpoint orchestration; it is not production-grade.

ZeRO-3 cannot rescue memory already exhausted while constructing the full model. Instantiate large parameters inside deepspeed.zero.Init (or use an equivalent FSDP/meta-device initialization path) so weights are partitioned as they are created.

import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.distributed as dist
import deepspeed
from torch.utils.data import Dataset

class SimpleLLM(nn.Module):
    def __init__(self, vocab_size=32_000, d_model=4_096):
        super().__init__()
        self.embed = nn.Embedding(vocab_size, d_model)
        self.layers = nn.Sequential(*[
            nn.Linear(d_model, d_model, bias=False) for _ in range(24)
        ])
        self.lm_head = nn.Linear(d_model, vocab_size, bias=False)

    def forward(self, token_ids):
        return self.lm_head(self.layers(self.embed(token_ids)))

class TokenDataset(Dataset):
    def __len__(self): return 1_000
    def __getitem__(self, index):
        generator = torch.Generator().manual_seed(index)
        return torch.randint(0, 32_000, (513,), generator=generator)

def train():
    deepspeed.init_distributed()
    with deepspeed.zero.Init(config_dict_or_path="ds_config.json"):
        model = SimpleLLM(vocab_size=32_000, d_model=4_096)

    engine, _, _, loader = deepspeed.initialize(
        model=model,
        model_parameters=model.parameters(),
        training_data=TokenDataset(),
        config="ds_config.json",
    )

    for tokens in loader:
        tokens = tokens.to(engine.device)
        inputs, targets = tokens[:, :-1], tokens[:, 1:]  # causal shift
        logits = engine(inputs)
        loss = F.cross_entropy(logits.float().flatten(0, 1), targets.flatten())
        engine.backward(loss)
        engine.step()
        if dist.get_rank() == 0:
            print(float(loss))
            break

The resolved global batch must equal microbatch × accumulation × data-parallel degree. Budget peak all-gathered parameter groups, activations, temporary buffers, fragmentation, and communication overlap in addition to persistent sharded states. Before scale-up, compare one-node and multi-node memory peaks and step time.

A resumable checkpoint includes sharded model and optimizer, scheduler, scaler/FP8 state, global tokens, RNG and sampler/data cursor, plus model/data/tokenizer/code/config hashes. Test restore with the deployed DeepSpeed version and launcher; a weights-only save is not an exact continuation.

The Engineering Trade-off

While ZeRO-3 is magical, it is not a silver bullet. The Just-In-Time broadcasting of weights makes training highly sensitive to network bandwidth. If your cluster lacks high-speed InfiniBand or NVLink, the GPUs will stall waiting for weights to arrive over the network. In such cases, engineers often fall back to ZeRO-2, or combine ZeRO-1 with Tensor Parallelism (which we will explore in Chapter 7.3).

Summary

ZeRO transformed distributed training from a hardware-bound limitation into a software-defined scaling problem. By recognizing that standard Data Parallelism wastes VRAM by replicating identical states, ZeRO partitions the Optimizer States (Stage 1), Gradients (Stage 2), and Parameters (Stage 3).

Coupled with CPU and NVMe offloading, ZeRO democratized the training of Foundation Models, allowing massive models to be trained on relatively modest hardware. However, as models push past 500 billion parameters, even ZeRO-3 across thousands of GPUs begins to experience network congestion. To solve this, we must physically slice the matrix multiplications themselves. In the next section, we will dive into 7.3 Model & Pipeline Parallelism.
